MACHINIST H61C Motherboard – LGA 1155, DDR3, Intel Core & Xeon Support Product Description Revive older Intel processors or build a budget-friendly system with the MACHINIST H61C Motherboard, designed for LGA...

DESCRIPCIÓN COMPLETA

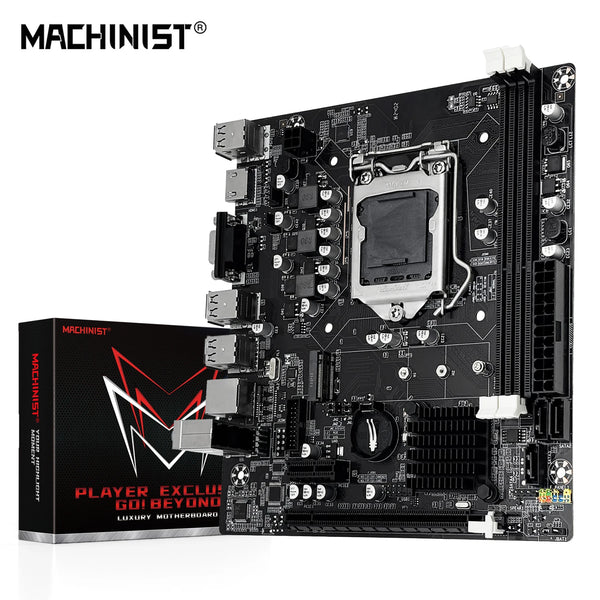

MACHINIST H61C Motherboard – LGA 1155, DDR3, Intel Core & Xeon Support

Product Description

Revive older Intel processors or build a budget-friendly system with the MACHINIST H61C Motherboard, designed for LGA 1155 socket CPUs. Featuring the Intel H61 chipset, dual-channel DDR3 memory support up to 32GB, NVMe M.2 support, and a compact form factor, this motherboard offers a cost-effective solution for office productivity, audio workstations, and everyday computing.

With VGA and HDMI display outputs, 6 USB 2.0 ports, and compatibility with both Intel Core and Xeon processors, the H61C is perfect for repurposing existing components or building a reliable secondary system.

Key Features at a Glance

Feature Details
Chipset Intel H61
CPU Socket LGA 1155
CPU Compatibility Intel Core (2nd/3rd gen), Intel Xeon (LGA 1155)
Form Factor Compact (190mm × 170mm)
Memory 2 x DDR3 slots, dual-channel, up to 32GB (16GB per slot)
Memory Type DDR3 desktop memory (1333/1600/1866 MHz)
Storage 3 x SATA 2.0, 1 x M.2 (NVMe/SATA, 2280)
PCIe Slots 1 x PCIe 2.0 x16, 1 x PCIe x1
USB Ports 6 x USB 2.0 (rear)
Display Outputs VGA + HDMI
LAN 100Mbps Ethernet
Audio 2.1 channel (mic input, line out, line in)

What's Included?

  • MACHINIST H61C Motherboard

  • I/O Shield

  • SATA Cable

⚠️ Note: CPU and memory are NOT included. Purchase separately.

Features in Detail

🖥️ LGA 1155 Platform

Built on the Intel H61 chipset, this motherboard supports:

  • Intel Core processors: 2nd generation (Sandy Bridge) and 3rd generation (Ivy Bridge) – i3, i5, i7

  • Intel Xeon processors: LGA 1155 variants (e.g., E3-1220, E3-1230, E3-1240, etc.)

💾 Dual-Channel DDR3 Memory

With 2 memory slots supporting dual-channel architecture, the H61C handles up to 32GB of DDR3 RAM (16GB per slot).

Supported memory speeds: 1333MHz, 1600MHz, 1866MHz

For optimal compatibility, use recognized brands: Samsung, Kingston, Micron, Hynix, or Sandee.

🚀 NVMe M.2 Support

Includes 1 x M.2 slot (2280) supporting:

  • NVMe SSDs

  • SATA SSDs (default SATA interface)

Add ultra-fast storage to an otherwise budget-oriented platform.

🖥️ Dual Display Outputs

Connect to modern monitors with:

  • VGA – Legacy display support

  • HDMI – Modern digital output for high-resolution displays

Perfect for office work, media playback, and dual-monitor setups.

🔌 I/O & Connectivity

Rear I/O Ports:

  • 2 x USB 2.0

  • 4 x additional USB 2.0 (total 6)

  • 1 x VGA

  • 1 x HDMI

  • 1 x 100Mbps Ethernet (RJ45)

  • Audio jacks (mic input, line out, line in)

Onboard Headers:

  • CPU fan connector

  • Front panel audio connector (AAFP)

  • 3 x SATA 2.0 ports

  • Front USB headers

🎮 PCIe Expansion

  • 1 x PCIe 2.0 x16 – Dedicated for graphics cards

  • 1 x PCIe x1 – Additional expansion (sound cards, network adapters, etc.)

📏 Compact Form Factor

Measuring 190mm × 170mm, this motherboard fits in smaller cases while offering essential features.

Technical Specifications

Specification Details
Brand MACHINIST
Model H61C
Chipset Intel H61
CPU Socket LGA 1155
CPU Compatibility Intel Core (2nd/3rd gen), Intel Xeon (LGA 1155)
Form Factor 190mm × 170mm
Memory Slots 2 x DDR3 (dual-channel)
Max Memory 32GB (16GB per slot)
Memory Type DDR3 desktop memory (1333/1600/1866 MHz)
Storage 3 x SATA 2.0, 1 x M.2 2280 (NVMe/SATA)
PCIe Slots 1 x PCIe 2.0 x16, 1 x PCIe x1
USB Ports 6 x USB 2.0
Display Outputs VGA, HDMI
LAN 100Mbps Ethernet
Audio 2.1 channel
Certifications CE, RoHS
Origin Mainland China

Important Notes

⚠️ Before You Buy

Note Details
Memory Supports DDR3 desktop memory only. Server memory (REG ECC) is NOT compatible.
CPU Compatibility 2nd and 3rd gen Intel Core (i3/i5/i7) and Xeon LGA 1155 variants.
M.2 Slot Default set to SATA interface. Supports both NVMe and SATA M.2 SSDs.
SATA Ports SATA 2.0 (3Gbps) – not SATA 3.0. Adequate for HDDs and basic SSDs.
LAN Speed 100Mbps Ethernet – not Gigabit. Sufficient for general use.
Customs Buyer responsible for customs clearance and any applicable tariffs.

Recommended Components

Component Recommendation
CPU Intel Core i5-2500, i5-3470, i7-2600, i7-3770; Xeon E3-1220, E3-1230, E3-1240 V2
Memory 2 x 16GB DDR3 (1600MHz recommended) – Samsung, Kingston, Micron, Hynix
Storage M.2 NVMe SSD for OS + SATA HDD for storage
GPU PCIe x16 graphics card (optional, integrated graphics available)
Cooler LGA 1155 compatible CPU cooler
PSU Standard ATX power supply (24-pin)

Perfect For

  • Budget Office PC: Reliable platform for everyday productivity

  • Audio Workstation: Stable with basic recording and playback

  • Home Theater PC (HTPC): HDMI output for media playback

  • Secondary System: Repurpose older components

  • Light Gaming: Pair with dedicated GPU for casual gaming

  • Educational Use: Affordable build for students

Revive your LGA 1155 components with the MACHINIST H61C Motherboard—DDR3 memory, M.2 NVMe support, and HDMI output in a compact package.



 is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
